A battery paper pasting machine applies a barley-paper or PVC insulation pad onto the positive (or negative) terminal of cylindrical cells — 18650, 21700, 26650, 32650, 32700 — before nickel-strip spot welding and pack assembly. Commercial units run 4,000–4,800 cells per hour on a 2–4 channel head, at roughly USD 6,300 per station.
Tell us your cell format and hourly volume on WhatsApp +86 153 0769 0902 and we match the head count.
Updated: Oct 6, 2026 · Author: NEGUP Content Team · Reviewer: pending human fact-check before publish.
| At a glance | Battery paper pasting machine (NG-005 class) |
|---|---|
| What it does | Sticks barley-paper / PVC insulation pad onto cylindrical cell terminals before spot welding |
| Supported cells | 18650 / 21700 / 26650 / 32650 / 32700 |
| Throughput per head | 4,000–4,800 cells/hour |
| Starting price | From ~USD 6,300 per station |
| Must specify in RFQ | Placement accuracy, adhesion, scrap handling, under 15 min changeover |
| Best for | Cylindrical pack lines at 60–200 ppm |
What a Battery Paper Pasting Machine Actually Does

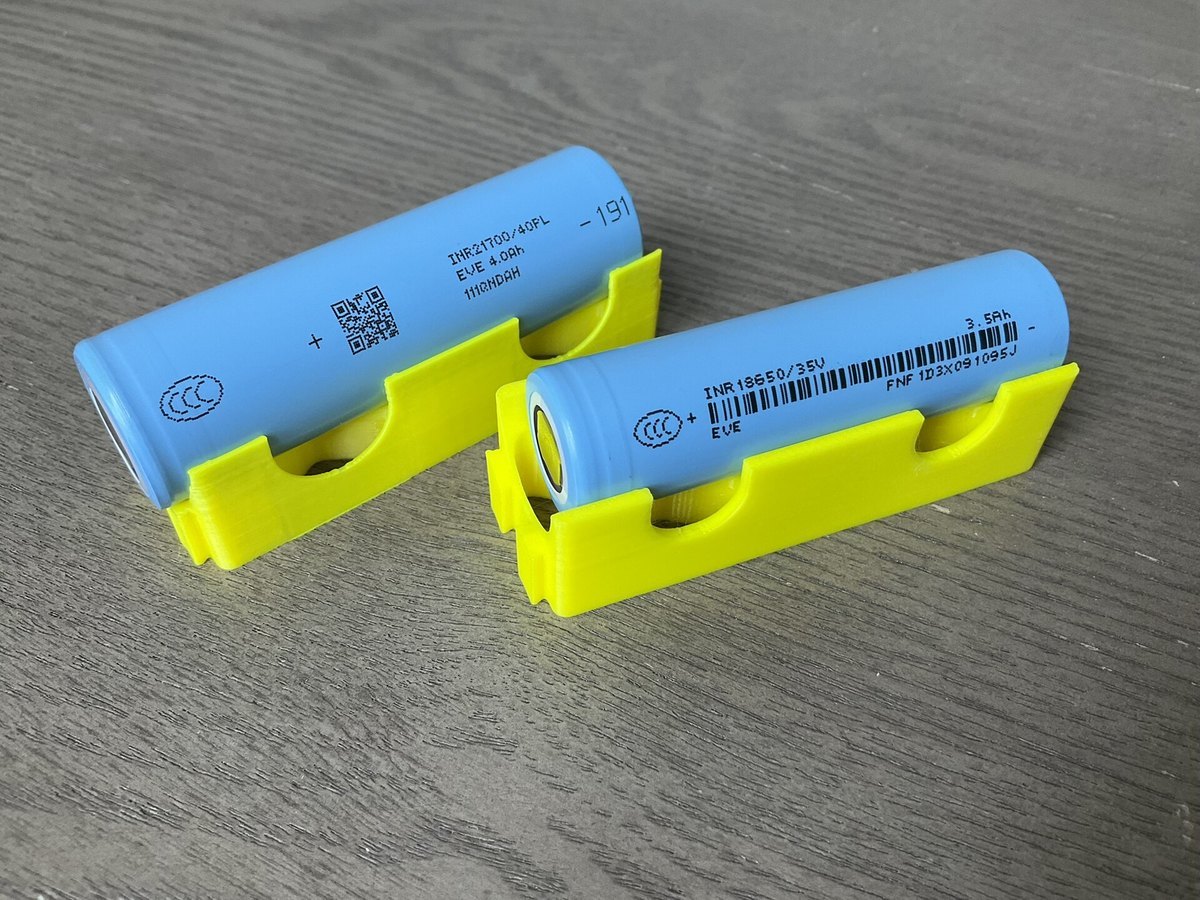

A battery paper pasting machine is the first real preparation step in cylindrical cell final assembly. After cells are graded and sorted, the machine drops a precisely cut insulation pad — highland barley paper or thin PVC — onto the terminal face so that the nickel strip or busbar welded on later cannot arc to the adjacent cell or to the steel can. It looks trivial next to a gigafactory winder, but it is the gate that protects every weld that follows. Skip it or mis-place it, and you trade one cheap pad for a line-stop short circuit, a scrapped module, or a warranty claim.
The motion is simple to describe, hard at speed: a hopper loads cells, a servo indexes each under a punch, a die cuts the pad from a roll, and a pneumatic head presses it flat. The cycle is a few hundred milliseconds per cell — which is why the station must be matched to line takt, not bought in isolation.
The 2026 Cylindrical Cell Wave That Drives Demand
The pasting station is riding the strongest cylindrical-cell investment cycle in a decade. Global lithium cell shipments reached an estimated 1,842.6 GWh in 2026 (up from 1,503.4 GWh in 2025, +22.6%), and the cylindrical format still holds a 15.3% share — roughly 282 GWh of cylindrical cells in 2026. Within that, the large 46-series (4680-class) is the fastest-growing slice, with shipments above 98.7 GWh in 2026, up 71.3% year on year. Every one of those cells passes a pasting or terminal-insulation step before it is welded.
| Metric | Figure | Source |
|---|---|---|
| Global Li-ion cell shipments, 2026 | 1,842.6 GWh (2025: 1,503.4 GWh, +22.6%) | GEP Research, 2026 |
| Cylindrical format share of Li-ion | 15.3% ≈ 282 GWh in 2026 | GEP Research, 2026 |
| Large 46-series (4680-class) shipments, 2026 | >98.7 GWh, +71.3% YoY | GEP Research, 2026 |
| Cylindrical Li-ion battery market value | USD 18.6B (2026) → 61.45B (2035), 14.2% CAGR | MarkWide Research, 2026 |
| 4680 cylindrical battery market | USD 5.48B (2025) → 6.11B (2026) → 11.24B (2032), 10.78% CAGR | 360iResearch, 2026 |
| Cylinder battery winding machine market | USD 3.82B (2025) → 7.86B (2032), 10.85% CAGR; fully-auto 75.2% | PW Consulting, 2026 |
| Battery spot welder market | USD 685.4M (2026) → 1,452.15M (2035), 8.7% CAGR | MarkWide Research, 2026 |
PW Consulting sizes the cylinder winding machine market at USD 3.82 billion (2025) heading to USD 7.86 billion by 2032, 75.2% already fully automatic — and every one of those lines needs a pasting-and-welding prep cell.
How the Machine Works — the Specs That Decide Yield
Buying on price per station hides the parameters that actually decide yield. The figures below are the published 2026 specifications for commercial cylindrical insulation-paper sticking machines.
| Parameter | Typical 2026 specification | Why it matters |
|---|---|---|
| Throughput | 4,000–4,800 cells/hour (≈67–80 cells/min) | Must clear line takt or it becomes the bottleneck |
| Supported cells | 18650 / 21700 / 26650 / 32650 / 32700 | Quick fixture changeover for mixed formats |
| Placement consistency | Stable, low-defect sticking; near-zero mis-paste | A mis-pasted terminal is a latent short |
| Power & supply | Single-phase 220 V, 50 Hz; ~2 kW | Fits a bench or an inline cell |
| Pneumatic pressure | 0.4–0.8 MPa with filtered air | Determines pad adhesion and flatness |
| Control | PLC + servo, 7.5" touch screen | Recipe per cell, fault alarm, traceability |
| Insulation material | Barley (highland barley) paper or PVC, 0.1–0.3 mm | Dielectric barrier at the weld zone |
| Paper width / roll | ~98–100 mm; roll Ø up to ~350 mm | Determines changeover frequency |
| Channels / bin | 2–4 channels; ~400-cell hopper | Parallel output for high-ppm lines |
| Price | From ~USD 6,300 per station | Low capex; scaling is by head count |
Two specs deserve extra attention: placement consistency (a pad skewed by even a millimetre can bridge terminal to can under weld pressure) and clean scrap handling (off-cut paper must be collected, not left to jam a feeder or contaminate the weld cell). Both are cheap to specify, expensive to find missing on an acceptance run.
Matching the Pasting Station to Your Line Takt
One head clears about 4,000–4,800 cells per hour; throughput scales linearly with head count. A 200 ppm line — the upper end of the 18650/21700/4680 turnkey lines shipping in 2026 — needs roughly 12,000 cells/hour of prep capacity, i.e. three to four parallel heads or an inline cell. Undersize it and the pasting station, not the winder, becomes the constraint.
For reference, a 21700 full-auto turnkey line runs about USD 11.7 million in equipment (USD 16.4 million all-in) for 1.2 GWh/yr, while a 4680 line runs USD 24.2 million equipment for 2.5 GWh/yr. Against capex like that, pasting stations at ~USD 6,300 each are rounding error — which is why buyers under-spec them and pay for it in downtime. Size the prep cell with the line.
Final-Assembly Prep & Joining by Cell Format
Cylindrical cells are the format where terminal-insulation paper is mandatory; prismatic and pouch cells solve the same short-circuit risk differently. The table maps the real production windows for three reference cells — Tesla’s 4680 cylindrical, EVE’s LF314 314 Ah prismatic, and a 50 Ah NCM power pouch.
| Attribute | Tesla 4680 (cylindrical) | EVE LF314 314 Ah (prismatic) | 50 Ah NCM power pouch |
|---|---|---|---|
| Terminal insulation prep | Barley-paper / cap insulation stick on terminal (paper pasting machine) | Laser-cleaned busbar + insulating film over terminals | Insulating film + pouch-edge seal |
| Core joining | Full-body laser patterning / busbar weld | Busbar laser weld + screw torque | Ultrasonic weld + flexible busbar |
| Interconnect weld | Multispot resistance weld of series groups | Busbar laser weld | Ultrasonic tab weld |
| Line takt | 60–200 ppm; 4680-specific up to 15+ PPM | 10–12 PPM line-level | 6–10 PPM line-level |
| Short risk prevented | Terminal-to-can / adjacent-cell arc | Busbar-to-case short | Tab-to-case short |
| Downstream proof | Pack aging 24–72 h | Pack aging 48–72 h | Pack aging 24–48 h |
NEGUP MACHINE supplies the cylindrical final-assembly chain end to end: the NG-005 paper pasting machine for terminal insulation, the NG-007 spot-welding / EOL test system and NG-008 comprehensive tester for the weld and electrical gates, and the NG-013 cell grading machine and NG-014 pack aging machine that sort and activate what the line produces. Tell us your cell format, pack architecture and hourly volume.
Acceptance Criteria to Write Into the RFQ
Like every station on a battery line, the pasting machine is decided by measurable acceptance numbers. State them in the RFQ and make an acceptance run on your own cells a condition of final payment.
| Check | Acceptance criterion | Coverage |
|---|---|---|
| Throughput | Cells/hour at your mix, not demo cells; ≥95% uptime in trial | full station |
| Placement accuracy | Pad centred on terminal; skew <0.5 mm; mis-paste <0.1% | every cell, vision or mechanical check |
| Adhesion | Pad survives handling, weld pressure and thermal cycle | destructive sample per shift |
| Format changeover | 18650↔21700↔32700 in <15 min with stored recipe | fixture + feeder set |
| Scrap handling | Off-cut paper collected; no feeder jam in 10,000-cycle test | mechanical cell |
| Data traceability | Per-batch count + alarm log to MES; recall ≤1 batch | system-level |
| Cell safety | Zero cell damage, zero contamination in acceptance run | acceptance run |
| Acceptance | Trials on your cells and fixtures; documented yield and Cpk | condition of payment |
The Takeaway: Small Station, Line-Level Consequence
The battery paper pasting machine is cheap and easy to overlook — which is precisely why it quietly decides pack yield on every cylindrical line riding the 2026 build-out (shipments 1,842.6 GWh, 46-series +71.3%, lines to 200 ppm). Buy heads to your takt, specify placement and scrap handling in the RFQ, and validate on your own cells.
NEGUP MACHINE supplies cylindrical battery assembly equipment including the NG-005 paper pasting machine, cylindrical spot-welding stations, and battery testing equipment covering cell grading, pack aging and PACK/module EOL test systems — configured to your cell format and hourly volume. Tell us your format and takt.
WhatsApp +86 15307690902 | rain@negupgroup.com
Frequently Asked Questions
What does a battery paper pasting machine do?
It sticks a barley-paper or PVC insulation pad onto the terminal of cylindrical lithium cells (18650, 21700, 26650, 32650, 32700) before nickel-strip spot welding and pack assembly — the dielectric barrier that stops the later weld arcing to the adjacent cell or the steel can. Commercial units run 4,000–4,800 cells per hour on a 2–4 channel head from about USD 6,300 per station.
How many pasting stations do I need for my line?
One head clears about 4,000–4,800 cells/hour, so a 60 ppm line (3,600 cells/hr) needs a single head while a 200 ppm line (12,000 cells/hr) needs three to four parallel heads or inline integration. Size the prep cell to line takt — undersizing it makes the cheapest station the bottleneck.
Is paper pasting only for cylindrical cells?
It is the mandatory terminal-insulation step for cylindrical cells. Prismatic cells (such as EVE’s LF314 314 Ah) use laser-cleaned busbars and insulating film, and pouch cells (50 Ah NCM) use insulating film plus a pouch-edge seal. All three formats solve the same short-circuit risk; cylindrical is the one that does it with a pasted pad.
What specs matter most when I buy one?
Placement accuracy (skew <0.5 mm, mis-paste <0.1%), pad adhesion under weld pressure and thermal cycling, clean scrap handling, and <15-minute format changeover. State them in the RFQ and trial on your own cells — a mis-pasted terminal is a latent short that surfaces only after welding.
How do I get a pasting machine quoted and validated?
Send your cell format, pack architecture and hourly volume. NEGUP MACHINE supplies the NG-005 paper pasting machine, cylindrical spot-welding stations, and the NG-007 EOL test system, NG-008 comprehensive tester, NG-013 grading machine and NG-014 pack aging machine that prove and activate what the line produces. Message us on WhatsApp +86 153 0769 0902 or email rain@negupgroup.com; acceptance testing on your own cells is in the offer.
