Automatic / Semi-auto Battery Assembly Lines
Turnkey production lines for cylindrical / prismatic / pouch cells — from cell feeding and sorting to welding, testing and packing.
Lithium Battery Manufacturing Solutions
Battery Assembly & Testing Equipment, Built for Scale
NEGUP MACHINE delivers complete cylindrical and prismatic battery production lines, single-station assembly machines, and high-precision testing systems — helping cell and pack makers improve yield, consistency and throughput.
- ✓ Cylindrical & prismatic cells
- ✓ OCV/IR sorting & grading
- ✓ Servo spot-welding lines
Our Core Solutions
Equipment & Service Provider
Battery Assembly Equipment
Reliable single-station machines engineered for stable, repeatable pack assembly.
Battery Testing Equipment

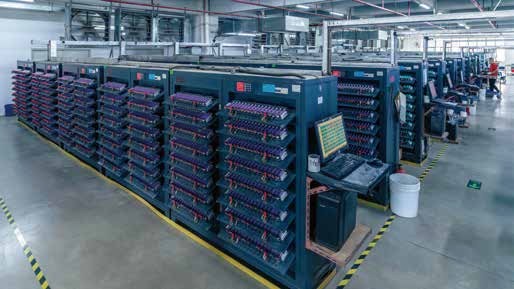

Formation, grading and aging systems with energy-feedback options for accurate capacity and lifecycle evaluation.
Battery Assembly Lines
Turnkey production lines for cylindrical, prismatic and pouch cells — from cell feeding and sorting to welding, inspection and packing.

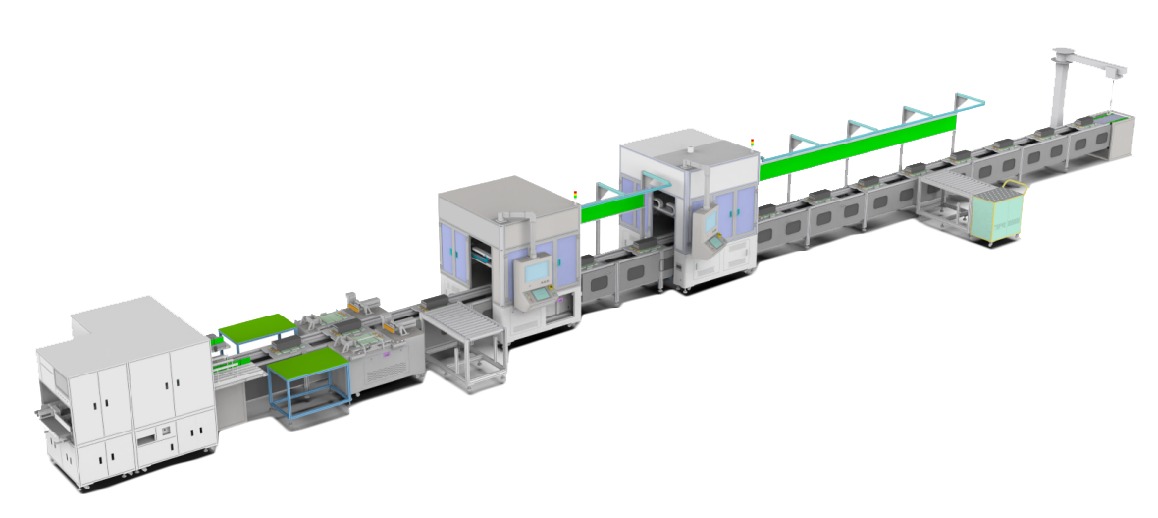

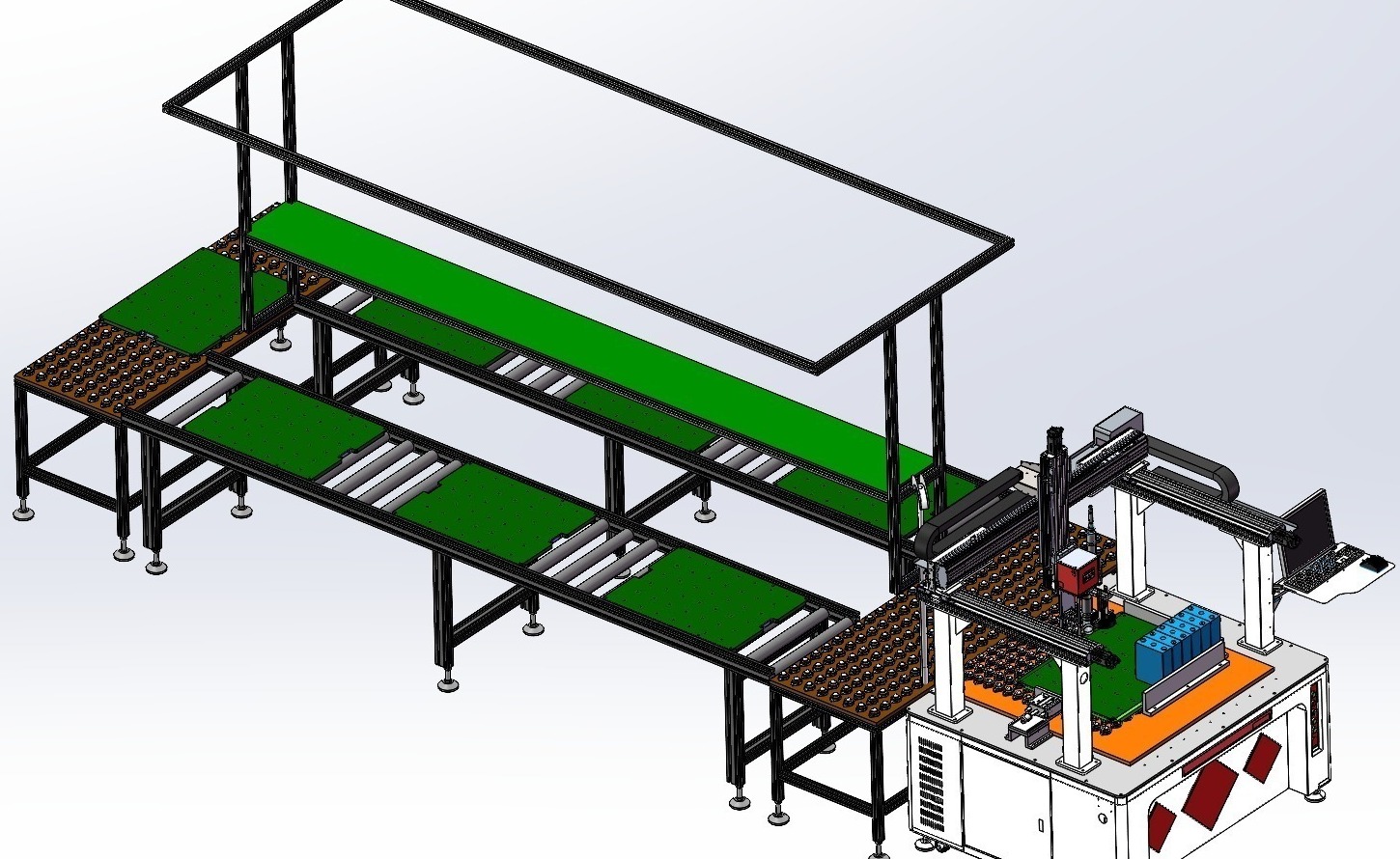

Cylindrical Assembly Line
Automated lines for 18650 / 21700 / 26650 / 32650 / 32700 / 32140 / 4680 cells, covering OCV/IR sorting, automatic spot welding/laser welding, sleeve wrapping and laser coding — widely used in power tools, e-bikes, EVs and energy-storage systems.
View details →Prismatic Assembly Line
Stacking, laser welding and formation lines for prismatic aluminum-shell cells (VDA PHEV2 / NMC prismatic formats), engineered for EV, commercial-vehicle and energy-storage applications requiring high structural strength and long cycle life.
View details →Pouch Assembly Line
Stacking, aluminum-laminate packaging, hot-pressing and formation lines for pouch cells, with top/side sealing and electrolyte-filling steps — designed for high-energy-density consumer-electronics, EV and energy-storage products.
View details →Product Line 02
Battery Assembly Equipment
Reliable single-station machines engineered for stable, repeatable cell and pack assembly.
Click · 6 photos

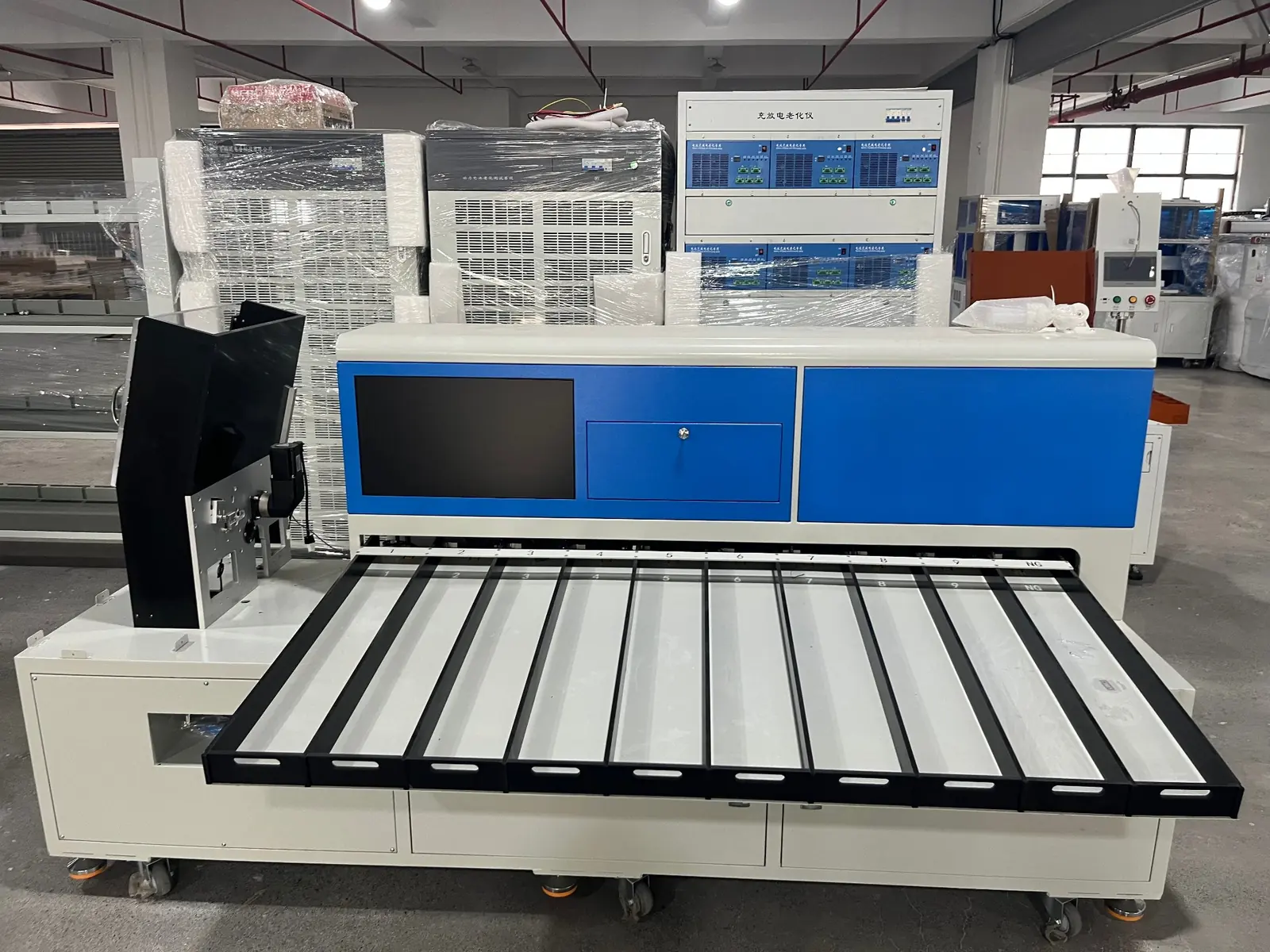

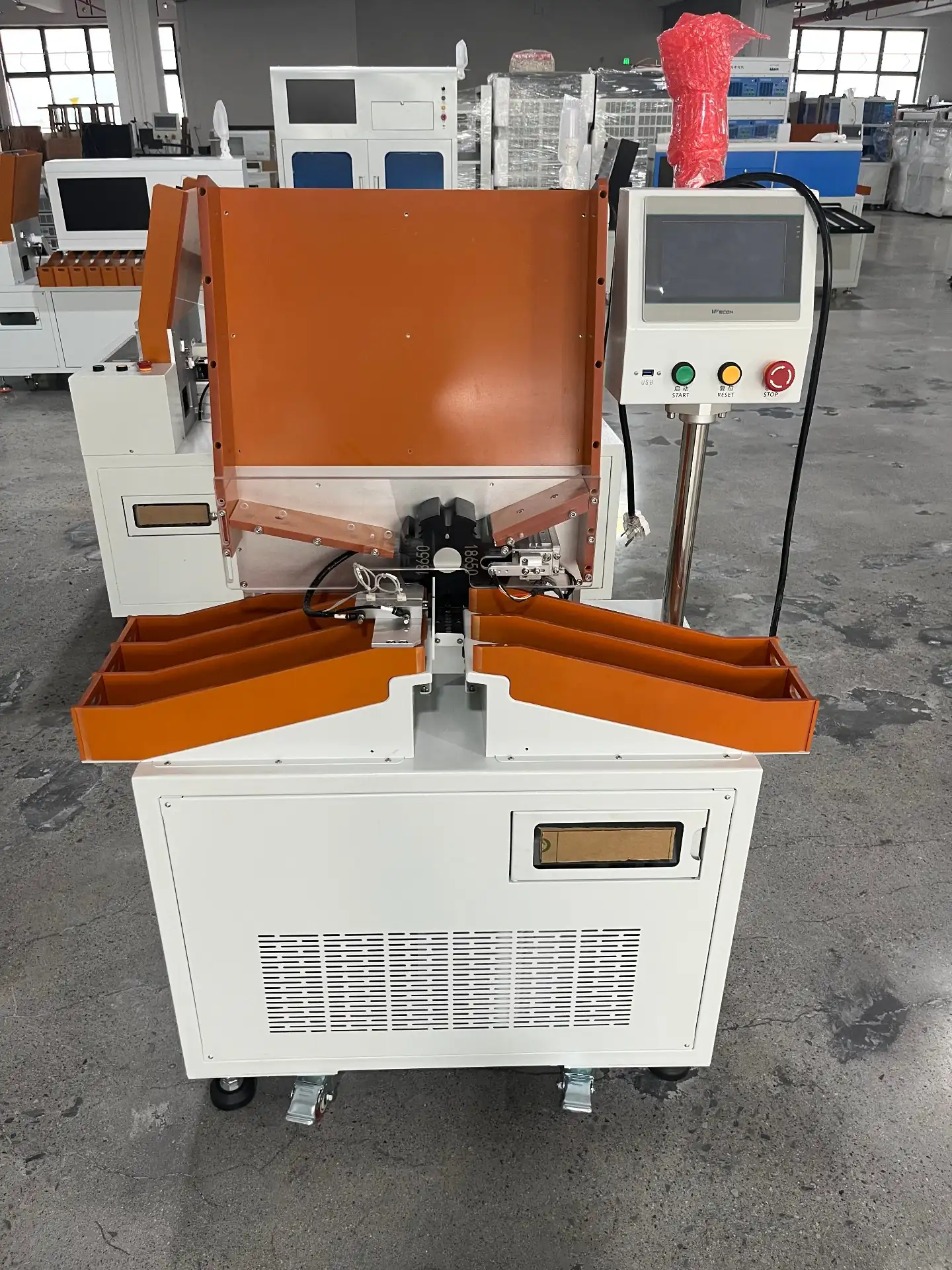

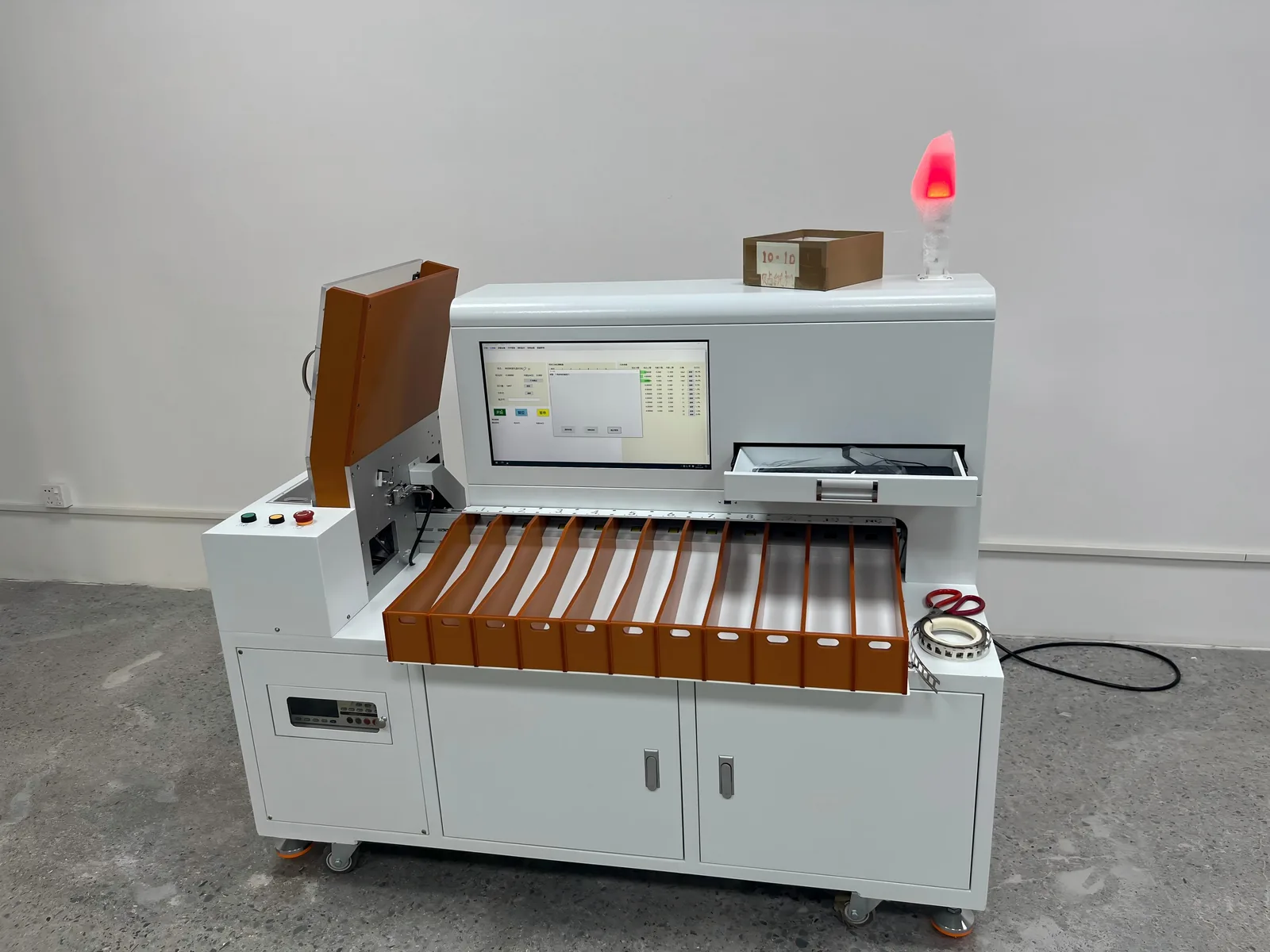

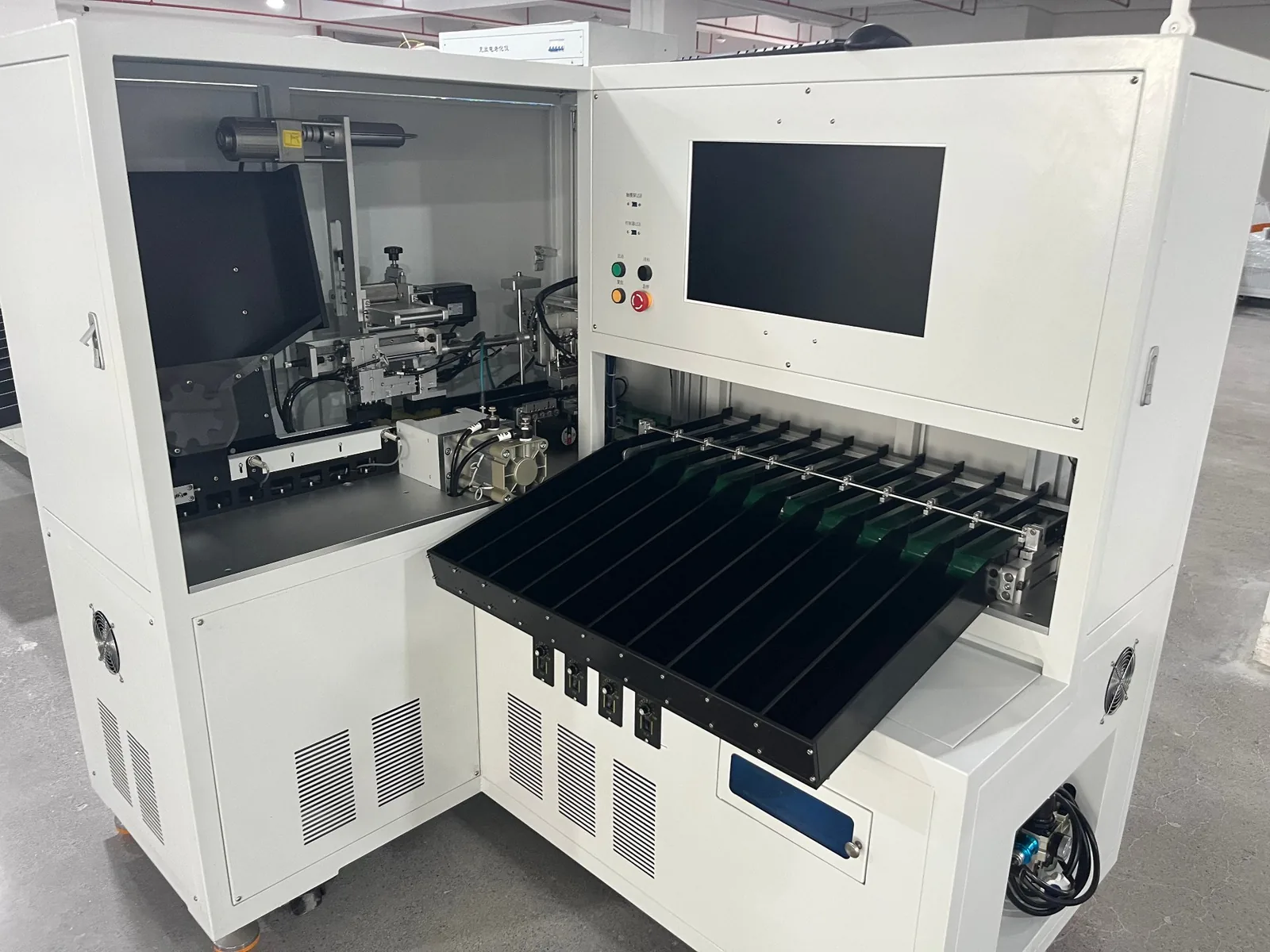

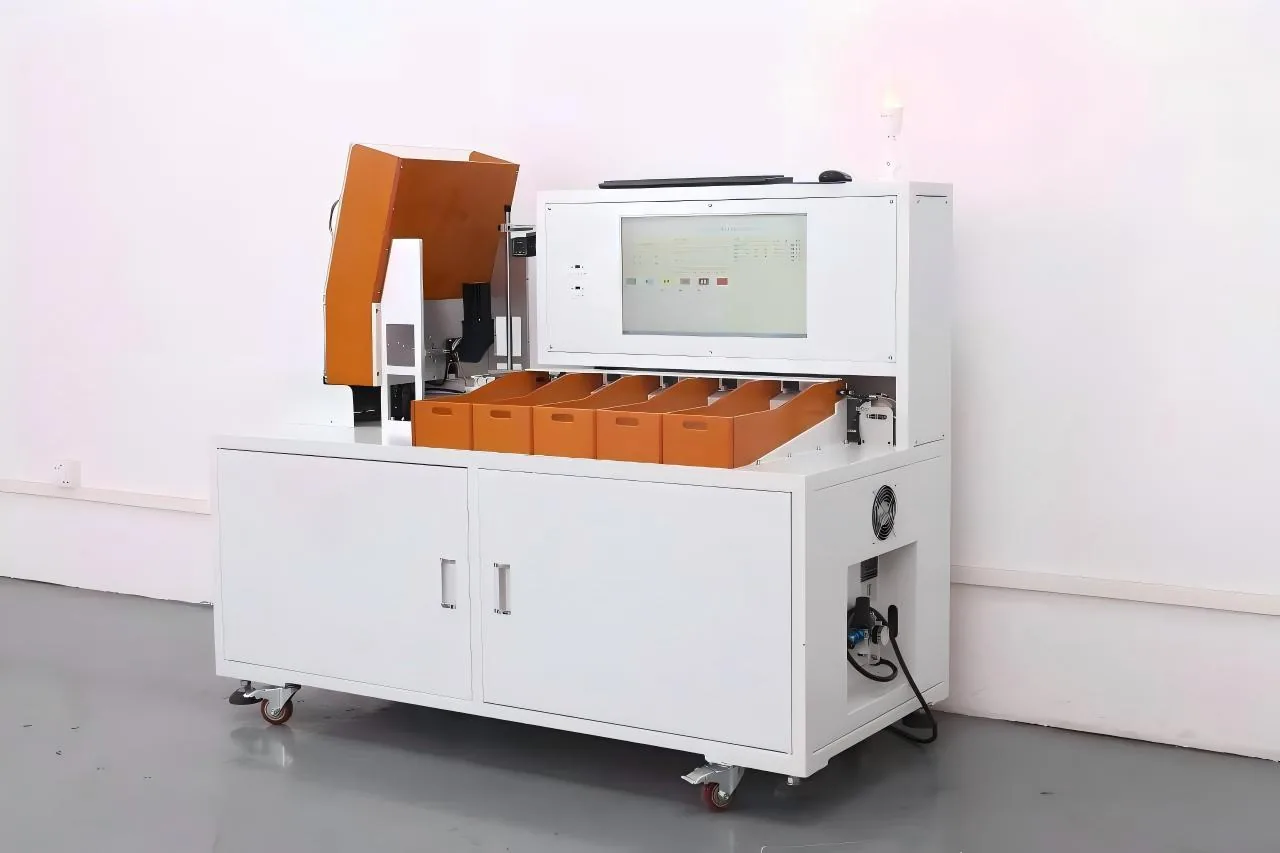

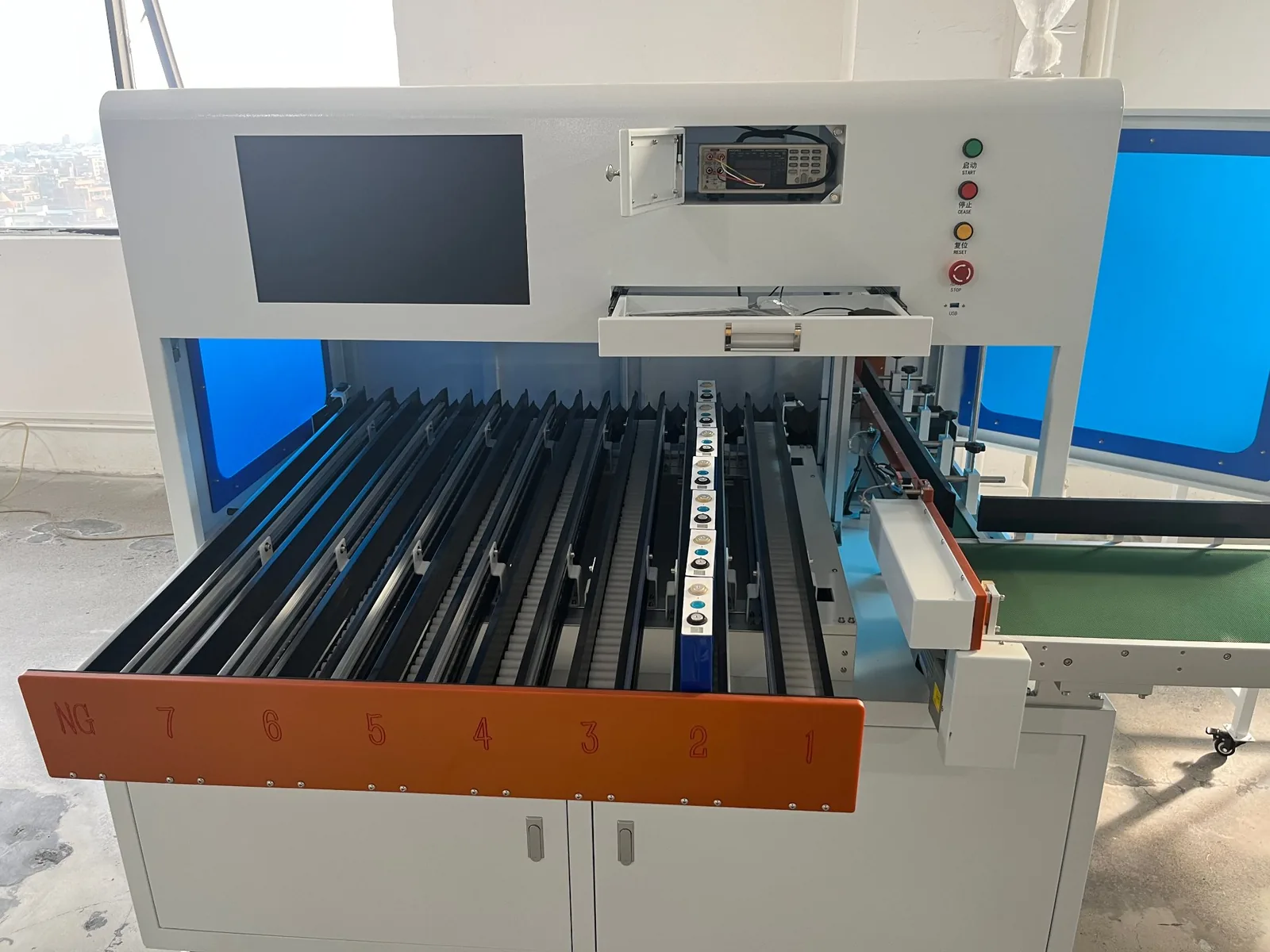

Cell Sorting Machine
Automatic OCV/IR sorting for cylindrical cells & Prismatic cells with multi-channel classification and traceable data export.
- Compatible: Cylindrical-18650 / 21700 / 26650 / 32650 / 32140 / 4680 / and Prismatic-50-628ah
- IR range: 10 mΩ –3.2 kΩ, ±0.5% accuracy
- Sorting speed: up to 4,500 pcs/h

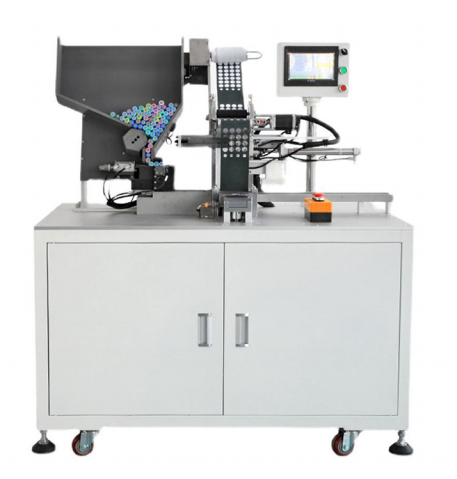

Paper Pasting Machine
Automatic pasting of insulation paper or PVC for cell terminals, with high-speed rotary feeding.
- Compatible: 18650 / 21700 / 26650 / 32700
- Efficiency: 3,500 – 4,000 pcs/h
Click · 6 photos

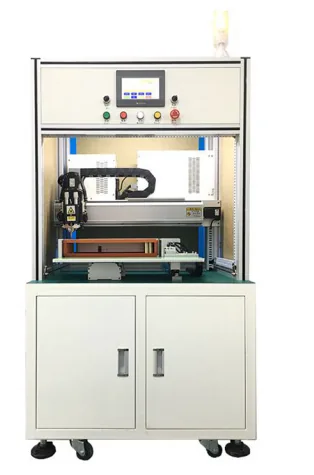

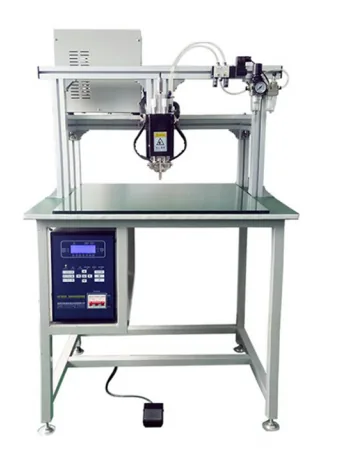

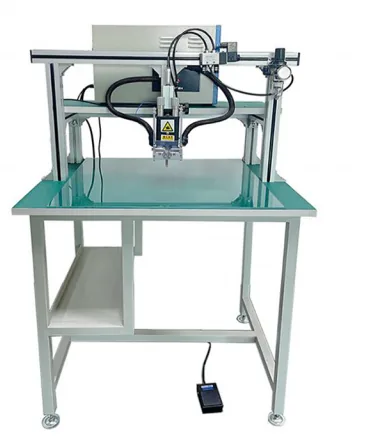

Spot Welding Machine
Manual & Automatic /Single & double-sided servo spot welders with DC inverter/transistor power supplies for nickel strips.
- Servo-driven head, 180° rotation
- Welding speed: 0.6 – 0.8 s/point
- Real-time current monitoring & alarm

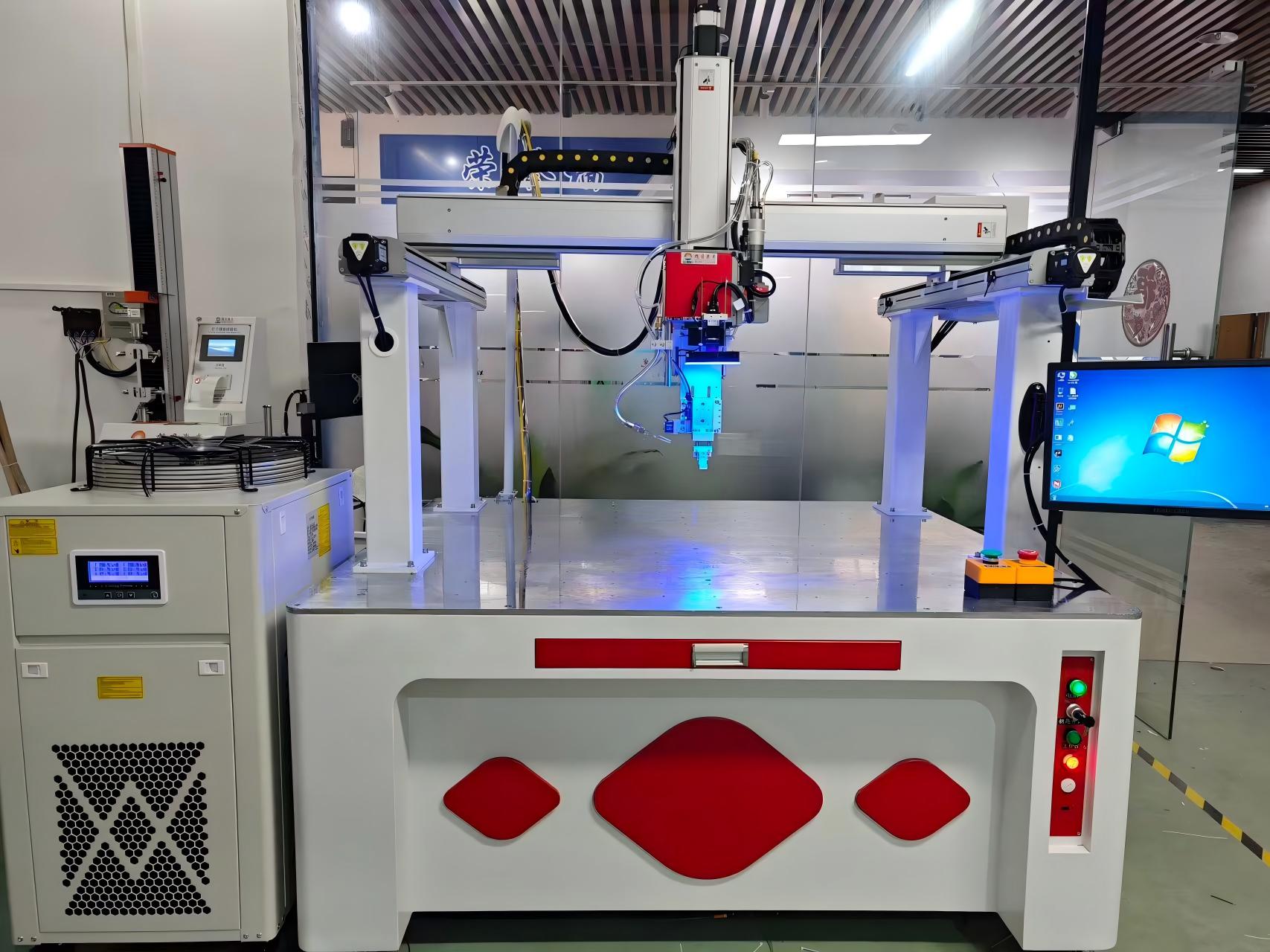

Laser Welding Machine (1-6KW)
Application: Prismatic battery pack, Pouch battery pack, Cylindrical battery pack
- Welding material: Aluminum / Copper / Mixed
- Welding Thickness available: 0.5-5mm
- Welding speed: 50-60mm/s

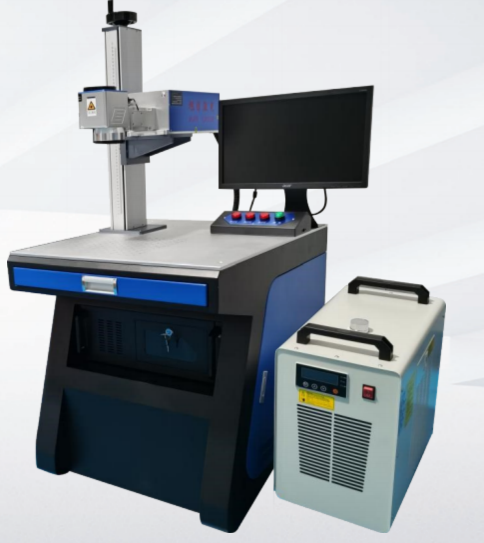

Laser Marking Machine
Application: Suitable for mobile power housing, charger housing, ABS, PT, PET and plastic housing.
- Power: Customized / depend on material
- Laser Output: 5 KHz to 80 KHz is continuously adjustable

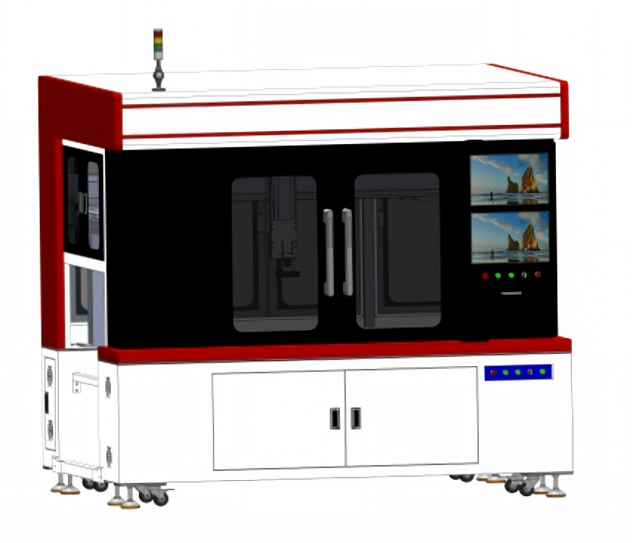

Online/Offline Polarity Detection Machine
Application: Inspection for different kinds of cells
- Visual system: Hikvision 12 million pixels
- XYZ axis travel: 1300×600×400mm
- Control cabinet size: 2400 × 1700 × 2200mm
- Single camera range: 100mm×100mm
- Power demand: 220V + 10% / 50HZ / 10A
Product Line 03
Battery Testing Equipment
End-of-line and functional test systems for battery modules, packs and protection boards.

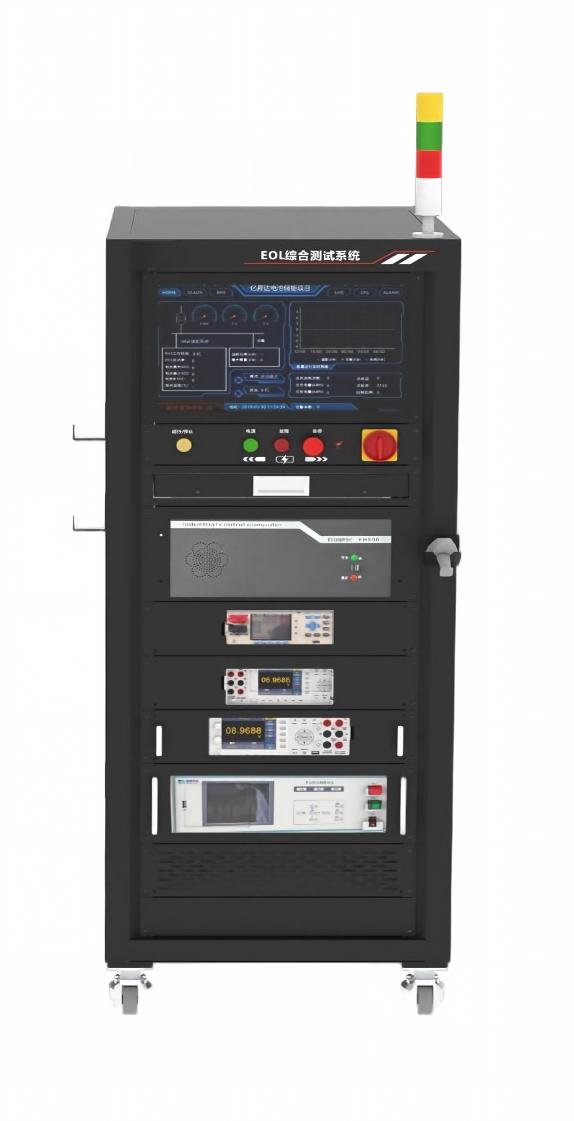

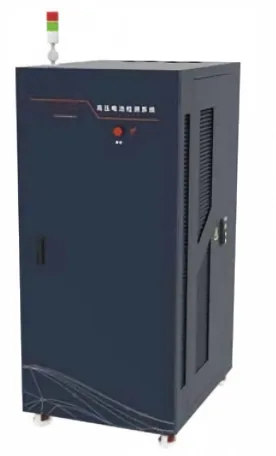

PACK/Module EOL Comprehensive Test System
For electric vehicles, buses, home energy storage, containerized energy storage, battery module PACK off-line testing and quality control.
The host computer software has a simple and clear user interface, editable test procedure sequence, and adjustable test parameters. It supports both 1D and 2D barcodes, and supports barcode scanning/foot pedal start. It features reverse connection protection for charging and discharging, and a reverse connection warning function. Test data is automatically saved, and a robust database facilitates quality traceability.
- Open Circuit Voltage (OCV)
- AC Internal Resistance (ACIR)
- PACK Insulation Test
- PACK AC Withstand Voltage Test
- PACK DC Withstand Voltage Test
- CAN Termination Resistance Test
- BMS Communication Function Test
- Relay Function Verification

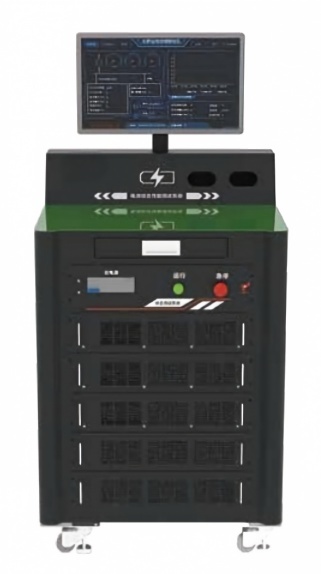

Comprehensive Tester
Voltage Rating: 100V/200V · Charging Current: 30A/50A/100A/200A · Discharging Current: 100A~3200A
- Open Circuit Voltage (OCV)
- AC Internal Resistance (ACIR)
- DC Internal Resistance (DCIR)
- Charging Activation (Charging Wake-up)
- Charging Voltage
- Charging Current
- Charging Voltage Difference
- Charging Overcurrent Protection
- Discharge Voltage (Load Voltage)
- Discharge Current (Load Current)
- Discharge Voltage Difference
- Discharge Overcurrent Protection (OCP)
- Short Circuit Protection Test
- Foot Switch Start
- Barcode Scan Start (Barcode Recording)

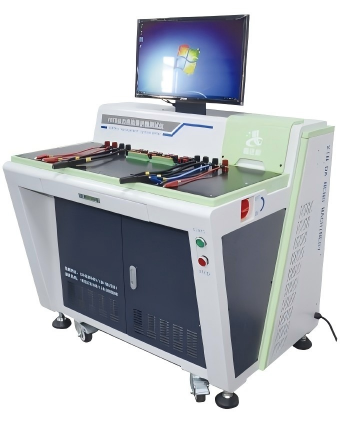

PBTS (M) series protective plate tester
Project parameters：
BMS temperature test:
BMS NTC temperature test (true temperature accuracy test) / BMS NTC temperature simulation test (simulation temperature accuracy test)
Resistance Test:
Resistance R1 test (ID, NTC test) / Resistance R2 test (ID, NTC test)
Temperature protection test (NTC required / Resistance meter):
Charging over temperature test (charging over temperature protection + recovery)
Charging under temperature test (charging under temperature protection + recovery)
Discharge over temperature test (discharge over temperature protection + recovery)
Discharge under temperature test (discharge under temperature protection + recovery)
- Support string count：1-64 Series
- Overcharge protection current：3-300A
- Overdischarge protection current：3-600A
- Active balance test (optional)：-1A-1A / -3A-3A / -5A-5A
Click · 4 photos

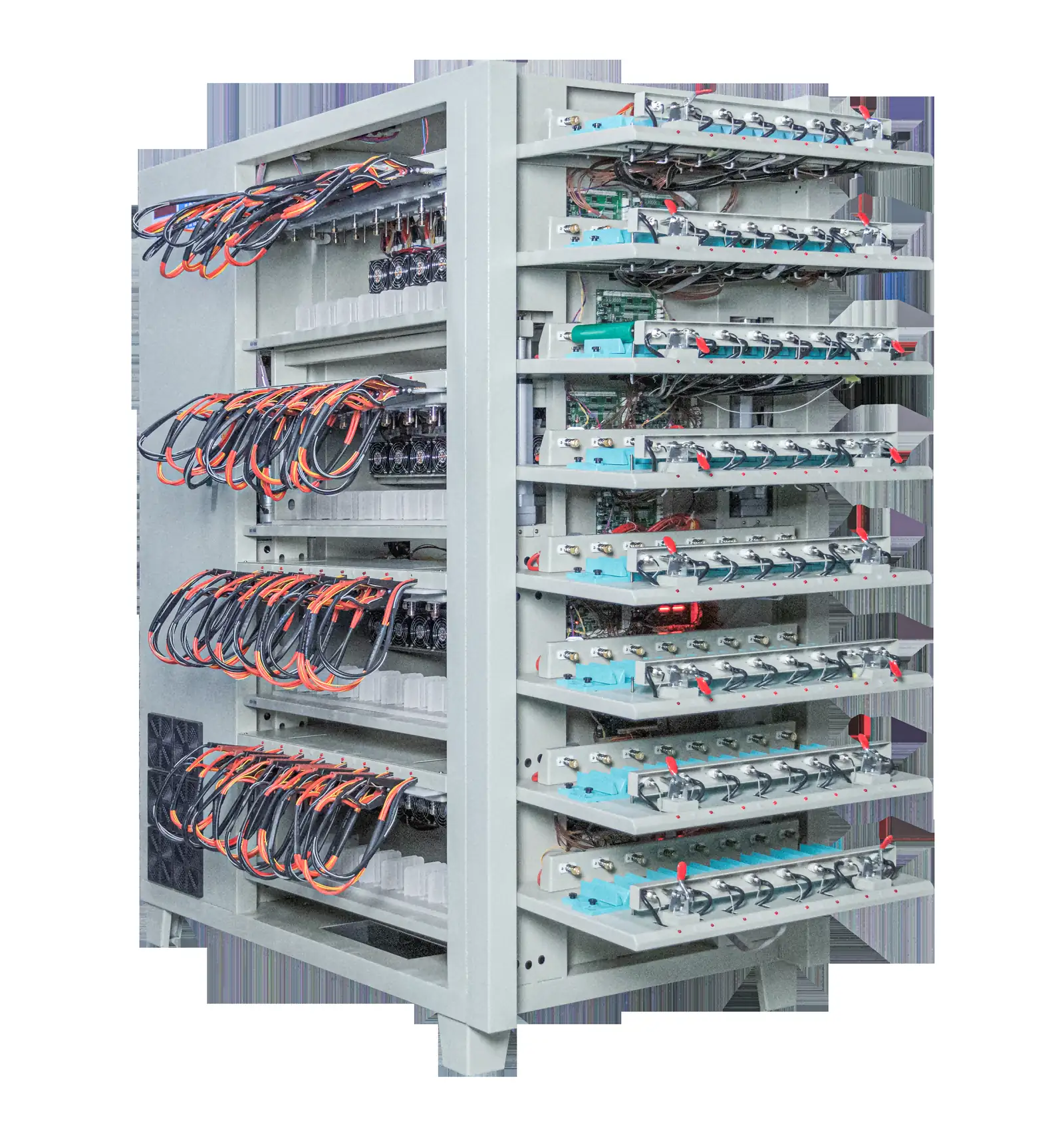

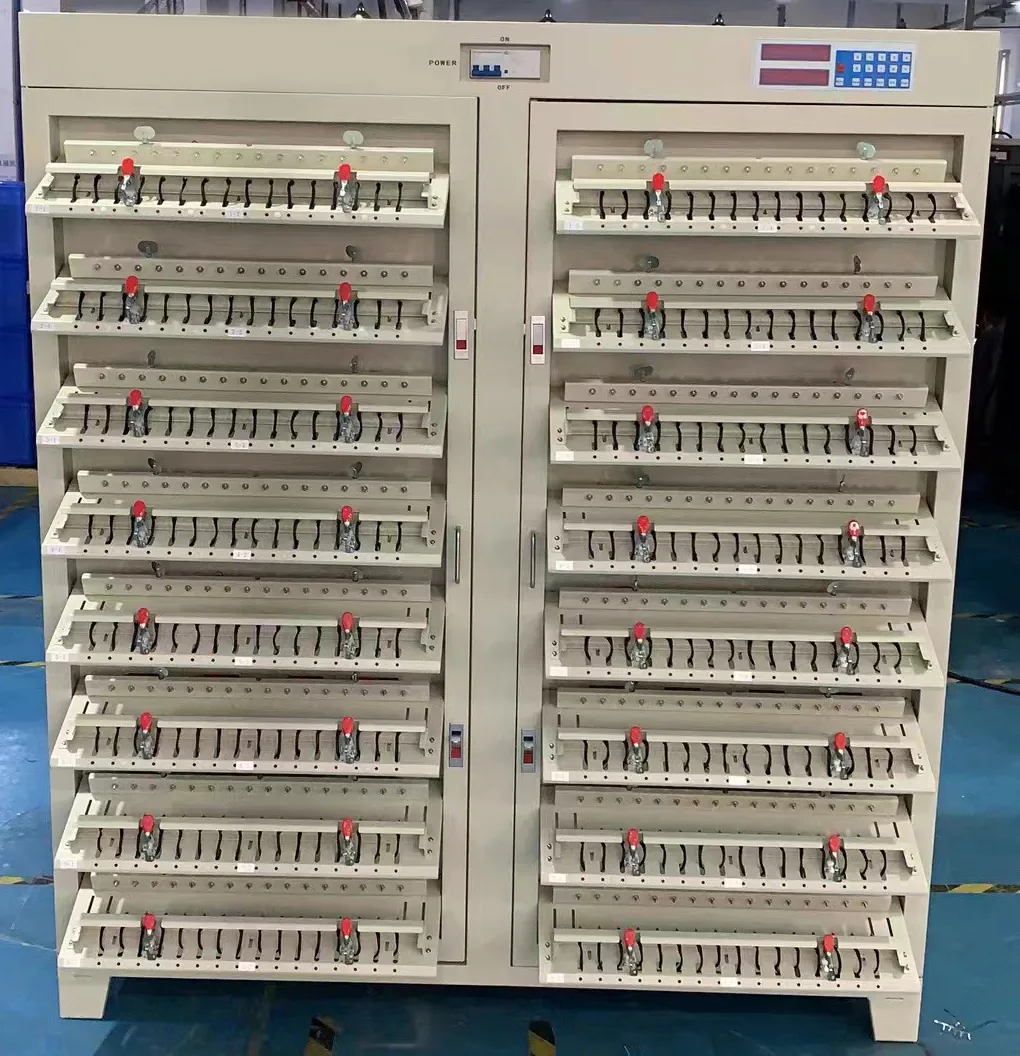

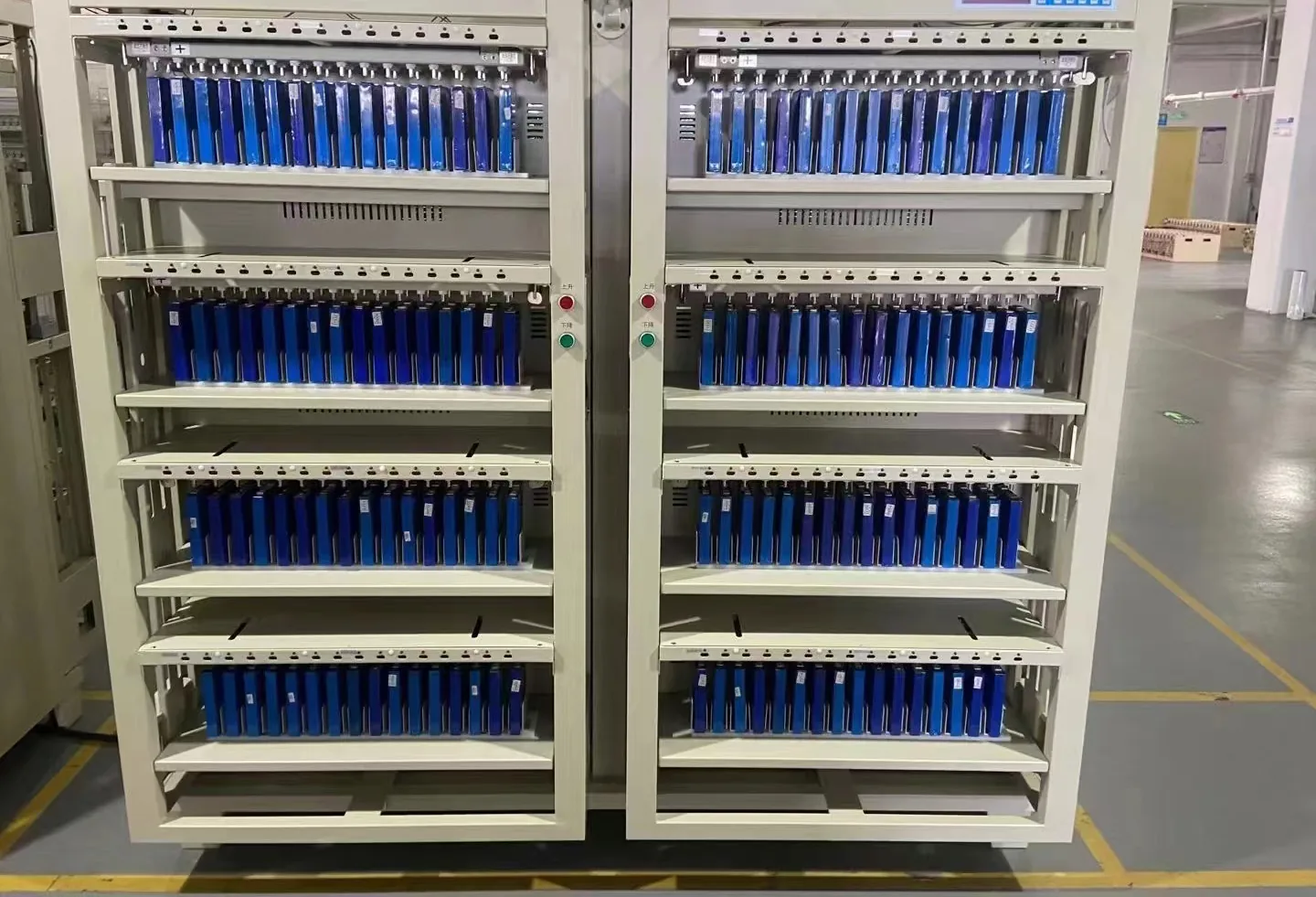

Grading Machine for Battery Cells
Application: Cylindrical / prismatic / pouch / universal cells.
- Voltage: From 0.1V-6V
- Current: From 0.1A-600A
- Channels: customized, depend on daily production.
Click · 3 photos

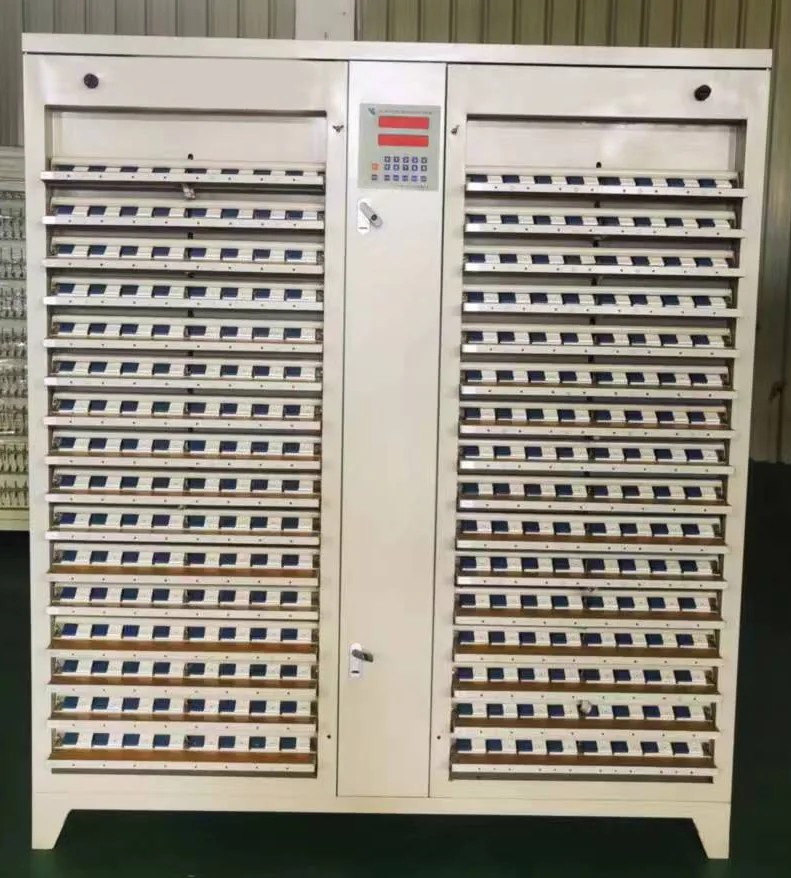

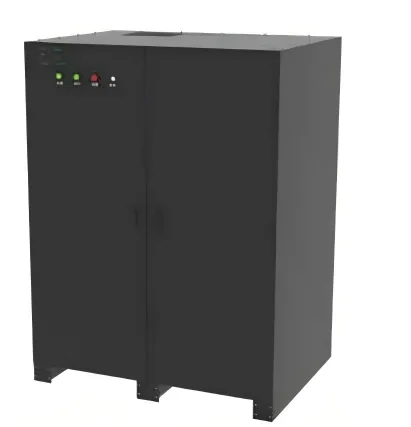

Aging Machine for Battery Pack
Application: Different kinds of packs.
- Voltage: From 0.1V-1000V
- Current: From 0.1A-1000A
- Channels: customized, depend on daily production.

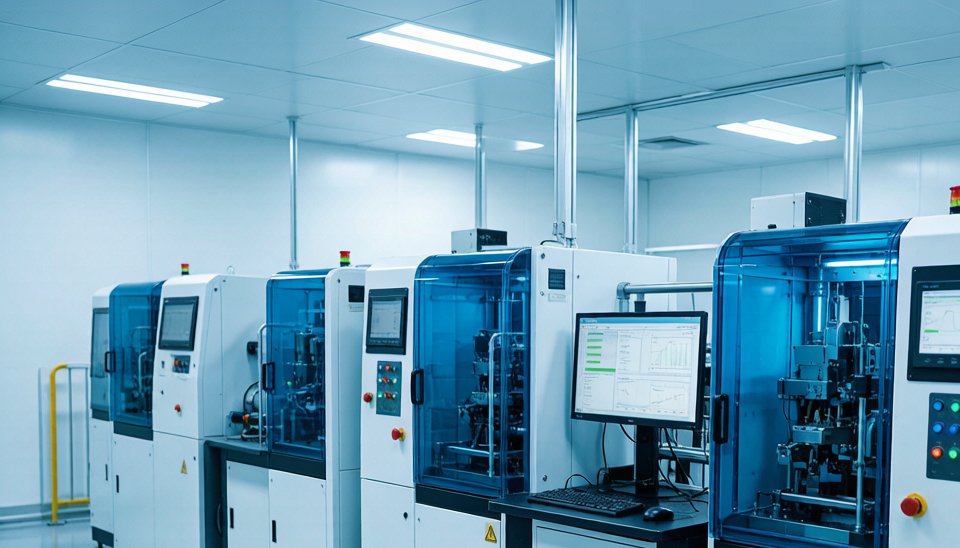

Manufacturing Capability
Watch Our Welding & Assembly Process
From precision laser welding of busbars to automated cell sorting and end-of-line testing — every step is engineered for repeatability, traceability and consistent yield. Our in-house process engineering team fine-tunes parameters for your cell format and capacity targets.
Discuss Your ProcessAbout NEGUP MACHINE
Huizhou Negup New Energy Equipment Co., Ltd.
NEGUP MACHINE, part of NEGUPGROUP, is a Chinese manufacturer of lithium battery assembly and testing equipment. We focus on cylindrical and prismatic cell production — from single machines to complete lines — and serve customers in electric vehicles, energy storage, power tools and 3C batteries.
Every machine is built around stable welding consistency, accurate sorting/grading and full data traceability, helping our customers reduce defects and raise yield.
Talk to Our Team- Customized lines tailored to your cell format and capacity targets.
- Stable quality via servo control and real-time monitoring.
- Data traceability with QR scanning and Excel reporting.
- Global support for installation, commissioning and training.
0
Years in battery equipment
0
Countries served
0
Equipment models
0
Equipment uptime
Applications
Where Our Equipment Works
From EV power packs to grid-scale storage and consumer cells — our assembly and testing equipment is deployed across the full lithium battery value chain.

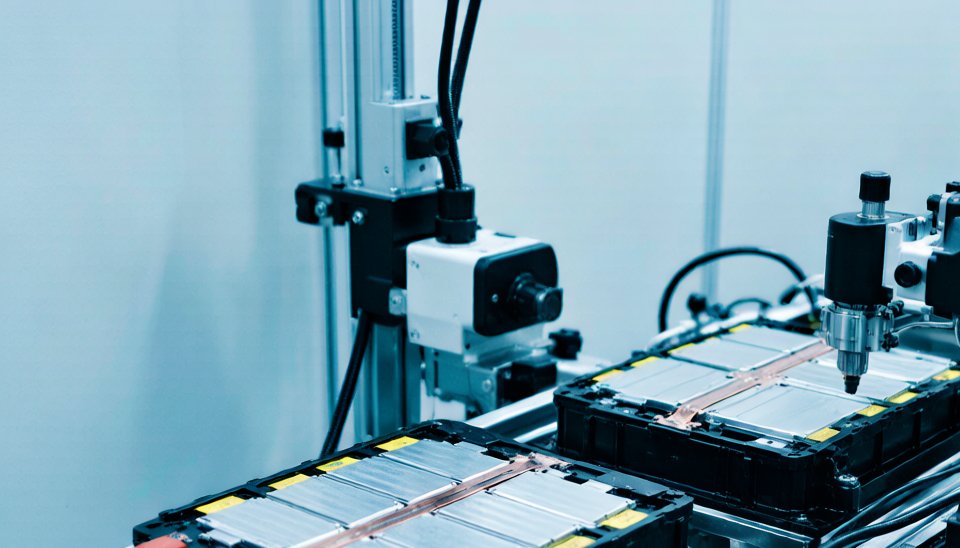

Electric Vehicles
Cylindrical & prismatic cell assembly and EOL testing for EV power batteries.

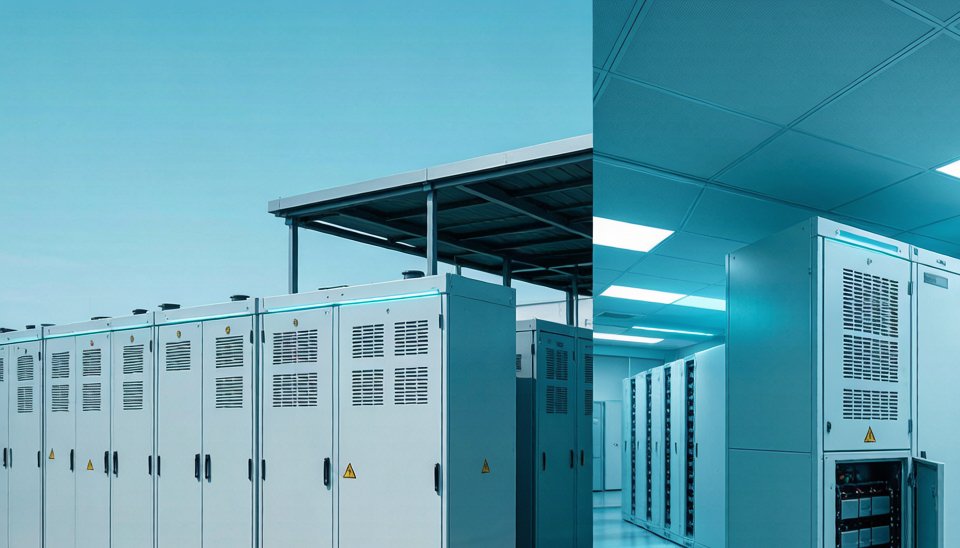

Energy Storage (ESS)
Formation, grading and aging systems for grid and commercial energy storage packs.
Power Tools & 3C
Compact cell sorting, spot welding and pack testing for power tools and 3C batteries.
